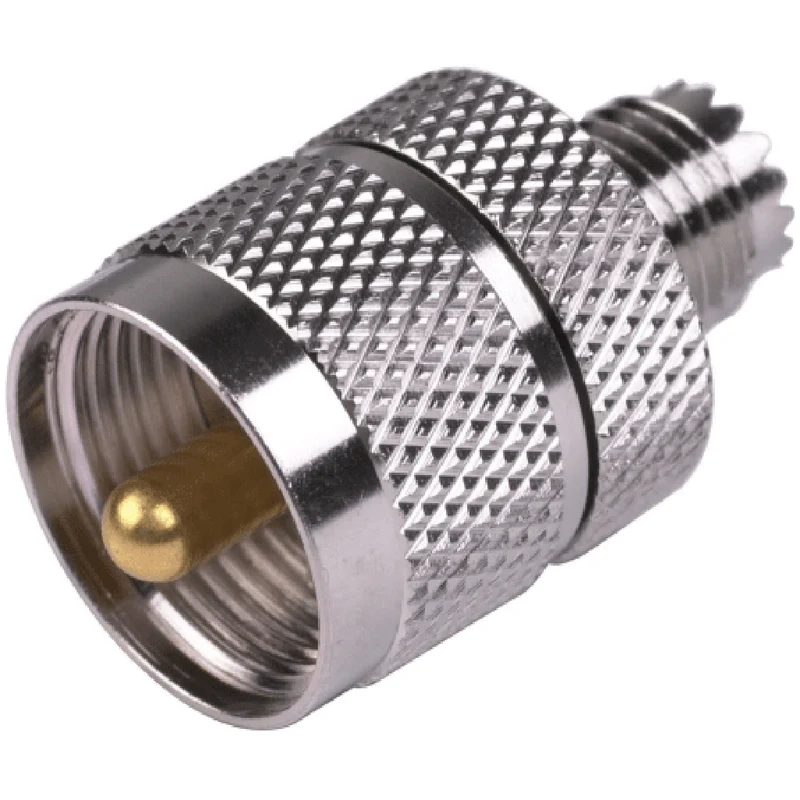

Motorola Mini-UHF Female to UHF Male Adapter

The Mini-UHF Female to UHF Male Adapter is a compact, high-performance RF connector designed to bridge Mini-UHF and UHF interfaces with minimal signal loss. Ideal for radio communication systems, antennas, and coaxial cable assemblies, this adapter ensures a secure and stable connection between devices using different connector types. Its precision-machined brass body with nickel plating offers excellent durability and corrosion resistance, making it suitable for both indoor and outdoor applications.

Engineered for 50-ohm impedance systems, this adapter supports frequencies up to 300 MHz, making it a reliable choice for general-purpose RF applications. Whether you’re upgrading a mobile radio setup or integrating legacy equipment, this adapter provides a seamless solution for extending compatibility across your communication gear.

🔧 Features & Specifications

• Connector Type: Mini-UHF Female to UHF Male (PL-259)
• Impedance: 50 Ohms
• Frequency Range: DC to 300 MHz
• Body Material: Brass with Nickel Plating
• Contact Material: Gold-plated brass
• Insulator: PTFE (Teflon)
• Adapter Style: Straight, in-line
• Low insertion loss and excellent VSWR performance
• Ideal for RF, antenna, and coaxial cable applications

📏 Dimensions & Weight

• Dimensions: 1.2″ (L) × 0.75″ (W) × 0.75″ (H)
• Weight: 0.05 lbs

📡 Compatible Radios & Devices

• Motorola CDM1250
• Motorola Radius M120
• Other radios and RF devices using Mini-UHF or UHF connectors
